Description
Product Overview

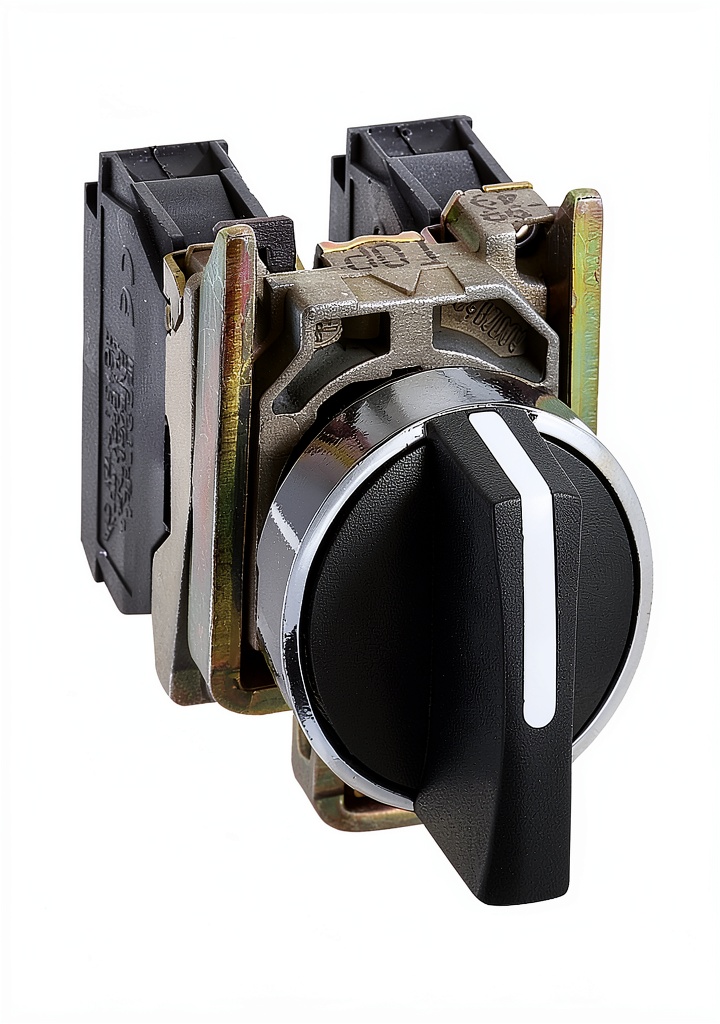

The SCHNEIDER ELECTRIC XB4BD53 is a precision‑engineered rotary switch designed for demanding industrial environments. Featuring a compact screw‑terminal mounting style, this switch provides two normally‑open (2NO) contacts that can safely carry up to 1.2 A at a voltage rating of 600 V. Constructed from high‑grade thermoplastic housing and copper alloy contact elements, the device offers excellent electrical conductivity, resistance to corrosion, and long‑term mechanical stability. Its dimensions of 3.54 × 2.04 × 1.29 inches allow easy integration into standard panel cutouts, while the robust screw terminals simplify wiring and reduce installation time. The XB4BD53 complies with international standards for industrial switches, ensuring reliable operation in automation systems, motor control circuits, lighting control panels, and other critical applications where consistent performance is essential.
Beyond its core electrical specifications, the XB4BD53 benefits from a thoughtfully designed ergonomic rotary actuator that provides tactile feedback and a smooth turning action. The actuator’s 15‑degree rotation range enables quick selection of the on/off position, reducing operator fatigue during frequent switching cycles. The switch’s internal spring mechanism is calibrated to maintain consistent contact pressure, minimizing bounce and ensuring a stable connection even under vibration or temperature fluctuations. Additionally, the device is rated for a minimum of 10,000 operational cycles, delivering longevity that aligns with the rigorous uptime requirements of modern manufacturing facilities.
Usage
Designed for a broad spectrum of industrial applications, the XB4BD53 excels in environments ranging from heavy‑duty machinery control to building automation. It is an ideal choice for PLC‑controlled conveyor systems, where precise on/off signaling is required to coordinate motor drives and safety interlocks. In process control panels, the switch can be employed to activate solenoid valves, initiate heating elements, or toggle sensor arrays, providing a reliable manual override when automated control is unavailable.
Because of its 600 V rating, the XB4BD53 can safely handle high‑voltage distribution tasks such as switching between different power sources, isolating transformer outputs, or managing three‑phase motor starters. The screw‑terminal design accommodates a variety of wire gauges, making it suitable for both small‑signal wiring and larger power conductors. Installers appreciate the clear labeling on the actuator, which reduces the risk of misconnection and speeds up commissioning processes. The switch’s compact footprint also enables its use in space‑constrained control cabinets, where every millimeter of panel real estate is valuable.
When deployed in harsh environments—such as factories with high dust levels, chemical processing plants, or outdoor enclosures exposed to moisture—the XB4BD53’s sealed housing and corrosion‑resistant contacts provide a dependable barrier against contaminants. Its robust construction meets IEC 60947‑5‑1 standards, guaranteeing performance under temperature extremes from –25 °C to +70 °C. This makes the switch a trusted component for equipment that must operate continuously across seasonal variations without degradation.
Why Choose Us
Choosing the SCHNEIDER ELECTRIC XB4BD53 means partnering with a brand that has a legacy of over 150 years in electrical engineering excellence. Schneider Electric’s global manufacturing network adheres to rigorous quality management systems, ensuring each switch undergoes comprehensive testing for electrical endurance, mechanical wear, and environmental resilience. Our commitment to sustainability is reflected in the use of recyclable materials and energy‑efficient production processes, aligning with corporate responsibility goals while delivering a product that meets the highest performance standards.
Our after‑sales support includes technical assistance from certified engineers who can help with installation guidance, troubleshooting, and integration into complex control architectures. We provide detailed datasheets, wiring diagrams, and compliance certificates to streamline the engineering workflow. In addition, the XB4BD53 is backed by a limited warranty that covers material defects and premature failures, giving customers confidence in the long‑term reliability of their investment.
By selecting this switch, you also benefit from Schneider Electric’s extensive supply chain, which ensures consistent availability and rapid delivery to minimize downtime. Our distribution partners are equipped to handle bulk orders and provide customized packaging options for large‑scale projects, making the XB4BD53 a practical choice for both small‑batch and high‑volume deployments.
Key Features
- Two normally‑open contacts rated 1.2 A at 600 V deliver reliable power switching for a wide range of industrial loads.
- Compact screw‑terminal design simplifies wiring and accommodates multiple wire gauges, reducing installation time.
- High‑grade thermoplastic housing and copper alloy contacts provide excellent durability and resistance to corrosion.
- Ergonomic rotary actuator offers smooth operation and clear tactile feedback, enhancing user experience in frequent switching scenarios.
- Backed by Schneider Electric’s global support network and warranty, ensuring peace of mind and reliable after‑sales service.
FAQ
What is the maximum current rating for the XB4BD53 switch?
The switch is rated for a continuous current of 1.2 A, which is suitable for most control and signaling applications in industrial settings.
Can the XB4BD53 be used in a three‑phase motor control circuit?
Yes, the switch’s 600 V rating allows it to be incorporated into three‑phase motor starter panels, provided the current per phase does not exceed the 1.2 A limit.
Is the screw‑terminal compatible with stranded and solid wire?
Both stranded and solid conductors are supported. The terminal’s design ensures a secure clamp for a variety of wire sizes, facilitating flexible installation options.
What certifications does the XB4BD53 meet?
The device complies with IEC 60947‑5‑1 and is tested for UL and CSA approvals, confirming its suitability for global industrial applications.
How many operational cycles can the switch endure?
Schneider Electric rates the XB4BD53 for a minimum of 10,000 mechanical cycles, guaranteeing long‑term performance even in high‑frequency switching environments.
